MD-HMI
Human Machine Interface


(Click picture for enlarged photo)

MD-HMI

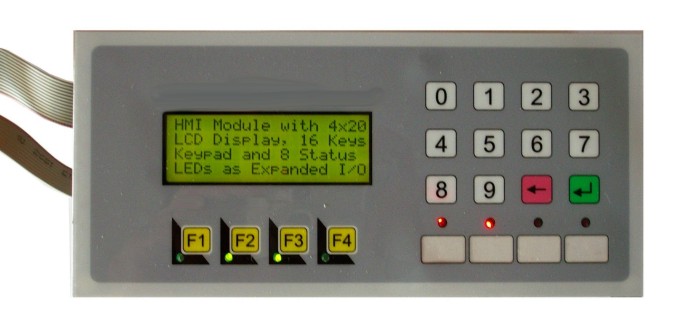

This product comprises one 4 lines x 20 characters backlit LCD display; a 16 keys keypad and 8 LEDs. This module is plugged into the LCD port and the expansion port of the PLC. It does not use up any of the PLC's I/O. The keys and the LEDs appear as expanded I/Os to the CPU.

Advantage: Numeric keypad data entry is much easier. Professional looking front bezel.
Note: Works only with T100MD+, FMD and F-series PLCs. Does not work with Nano-10 or E10.
  • Download Installation Guide: inst-HMI.pdf

  • Download TRiLOGI programs for use with the MD-HMI: HMI.zip

  • A standard Lexan cover is included, but OEM users could also make their own customized Lexan cover. See examples below:


Source: www.blockwise.com

Source: www1.genewscenter.com
