Notes:

• To use M2018P, please remove the M2017P from its socket and replace with M2018P.

• Please check to ensure that all 8 pins of the M2018P IC are inserted properly into the socket. Any pin that is not inserted properly will cause the EEPROM to fail to save/load program.

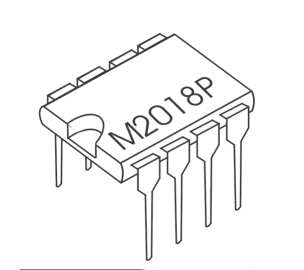

M2018P

All T100MD+ and T100MX+ PLC come with standard EEPROM that provides only 6016 words of program memory and 1770 words of data memory (or 87 x 40-byte strings).

If you run out of program or data memory on the standard model you may purchase an M2018P EEPROM which can increase the EEPROM size to the following:

   Program Memory with M2018P : 8190 words
   Data EEPROM memory with M2018P: 7750 words (or 387 x 40-byte strings)
