Optional LCD Module (2x16or 4x20)


DIN-Rail Mounting Kit option

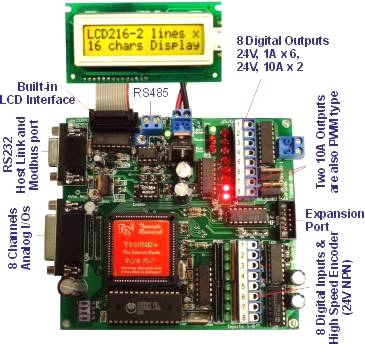

*T100MD888+

* Note: This is a Legacy Product as of 12/31/2011 and has been replaced by the FMD88-10.

BD14582_.GIF (185
        bytes) 8 Analog I/O
- 6 x AI -10 bit, 0-5V
- 2 x AO - 8 bits, 0-5V
BD14582_.GIF (185
        bytes) 8 Digital Outputs
- includes 2 x PWM
10A @24VDC,
- include 2 x stepper motor pulse outputs.
BD14582_.GIF (185
        bytes) 8 Digital Inputs (24V NPN)
- include special inputs such as
interrupts, high speed encoder, etc.
BD14582_.GIF (185
        bytes) Expandable using EXP4040 and EXP1616R.
BD14582_.GIF (185
        bytes) Dimension: 5.0"(L)x 4.5"(W) x 0.8"(H)
BD14582_.GIF (185
        bytes) Optional DIN-rail mounting kit for easy installation.
1.  T100MD888+ Data Sheet
2.  T100MD888+ Installation Guide
3.
M-series PLC User's Manual
